Tail Lighting

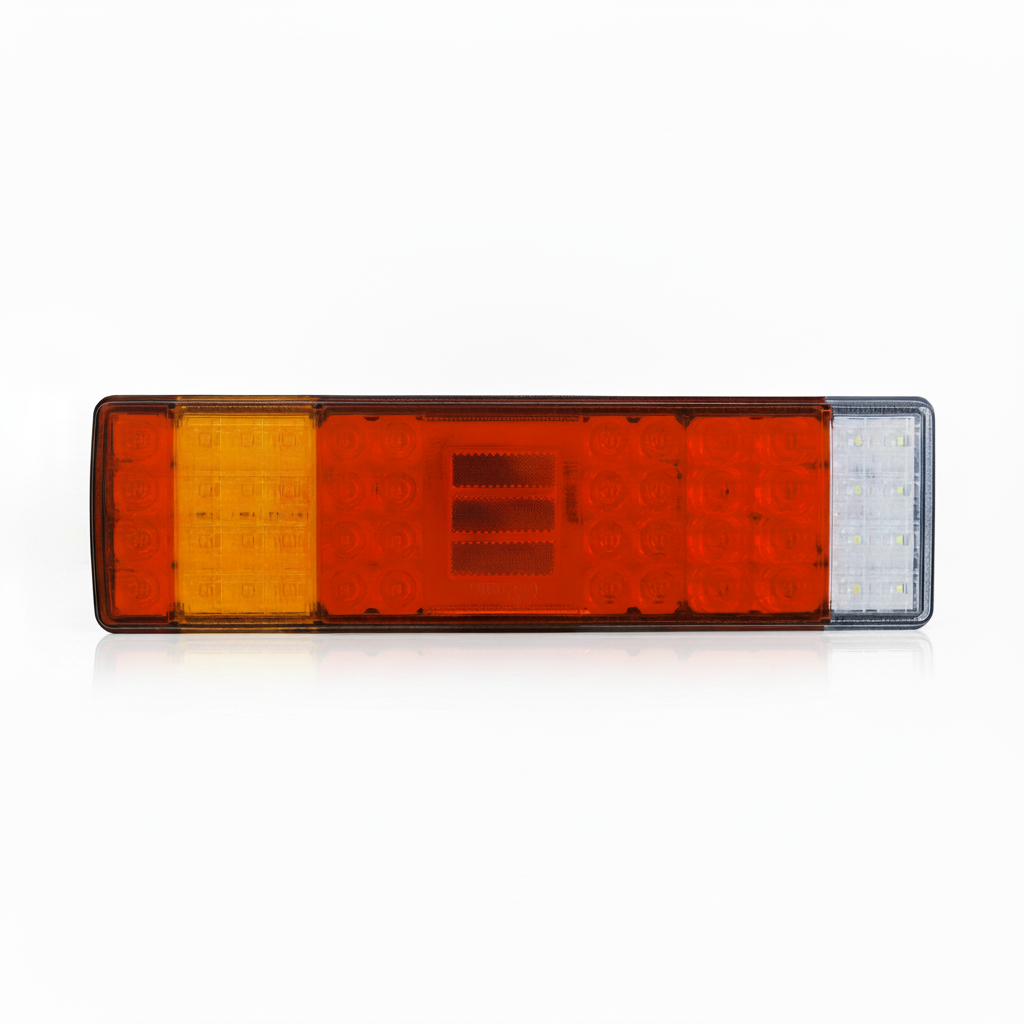

LED Tail Light Combination Truck/Trailer with Built-In Smart Resistor (RH) - LG553
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG553 |
| Product | LED trailer tail light combination - right hand side |
| Functions | Stop / tail / indicator / fog / reverse / reflector |
| Voltage | 24V |
| Features |
|
| LED type | High intensity CREE XTE LEDs |
| Light colours | Amber / red / white |
| Colour temperature | 6000K on reverse |
| Service life | 50,000h |
| Ingress protection | IP68 |
| Approvals | E-mark certified, ECE R10, R3, R4, R6, R7, R23, R38, R91 |
| EMC | CISPR25 Class 4 |
| Connection | 7 pin plug and 100 cm cable. Wiring: earth (blue), tail (yellow), reverse (black), indicator (brown), brake (grey), fog (white). Adaptor LG1811 available for Volvo / Renault. |
| Dimensions | 486 x 130 x 70 mm |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
24V LED combination truck/trailer tail light with a built-in smart resistor, right hand side.
Stop, tail, indicator, fog, reverse and reflector in one unit, with a built-in number plate light, side marker light and smart load resistance on the indicators so no separate resistors are needed. High intensity CREE XTE LEDs, IP68, 50,000 hour service life, E-marked to ECE R10, R3, R4, R6, R7, R23, R38 and R91.
Supplied with a 7 pin plug and 100 cm cable. An LG1811 adaptor is available for Volvo and Renault trucks.
