22" (550mm) LED Driving Lightbar with Dual Colour Position - LG982
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG982 |
| Product | 22" (550 mm) LED driving lightbar with dual colour position light |
| Power |
|
| LED type | OSRAM LEDs |
| Voltage | 10-30V |
| Light output |
|
| Features |
|
| Construction | Aluminium casing, polycarbonate lens |

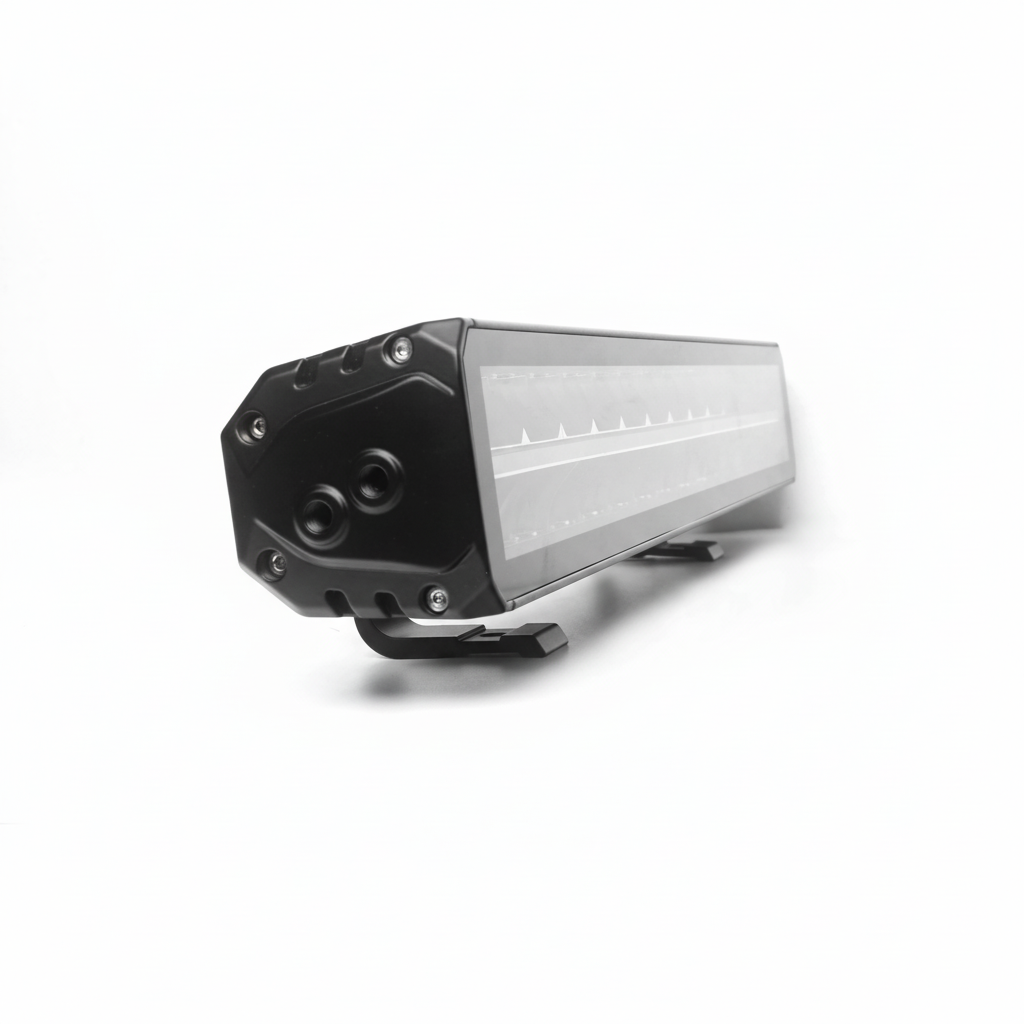

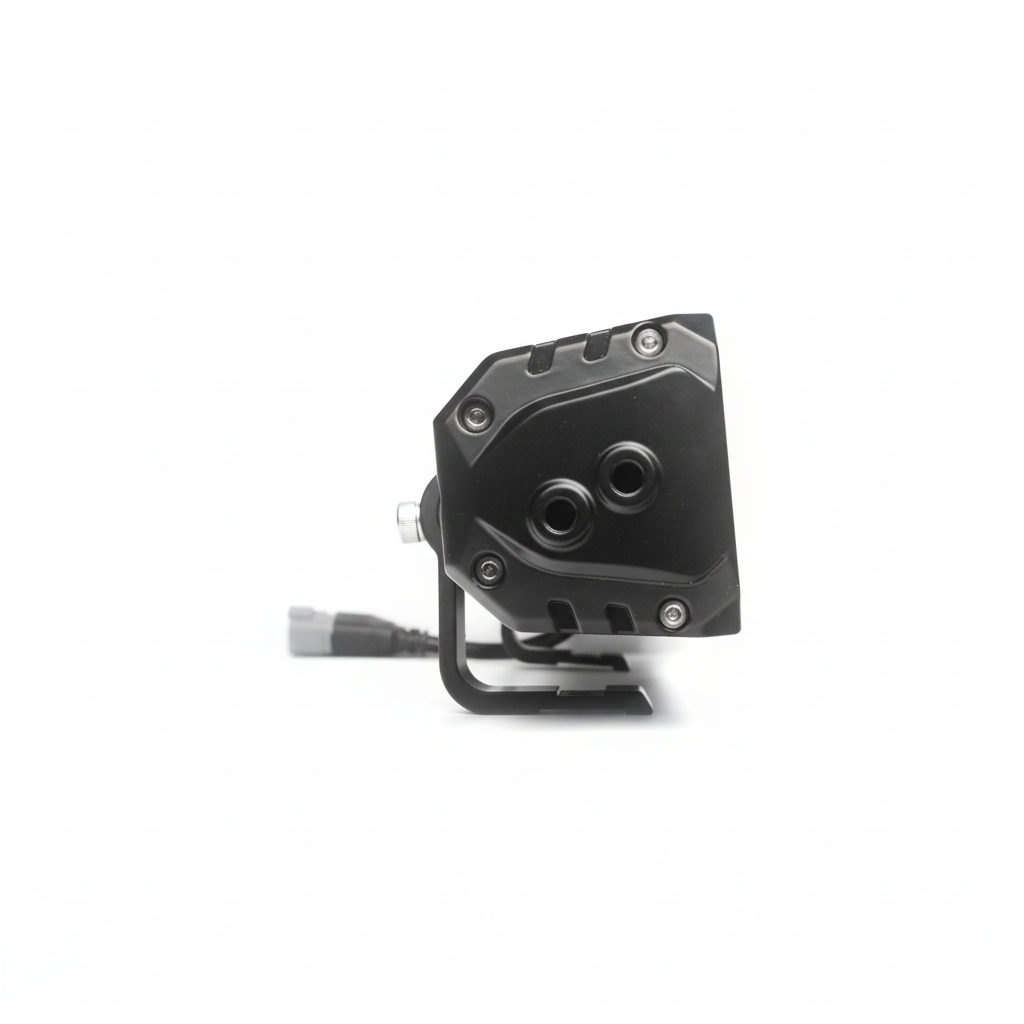

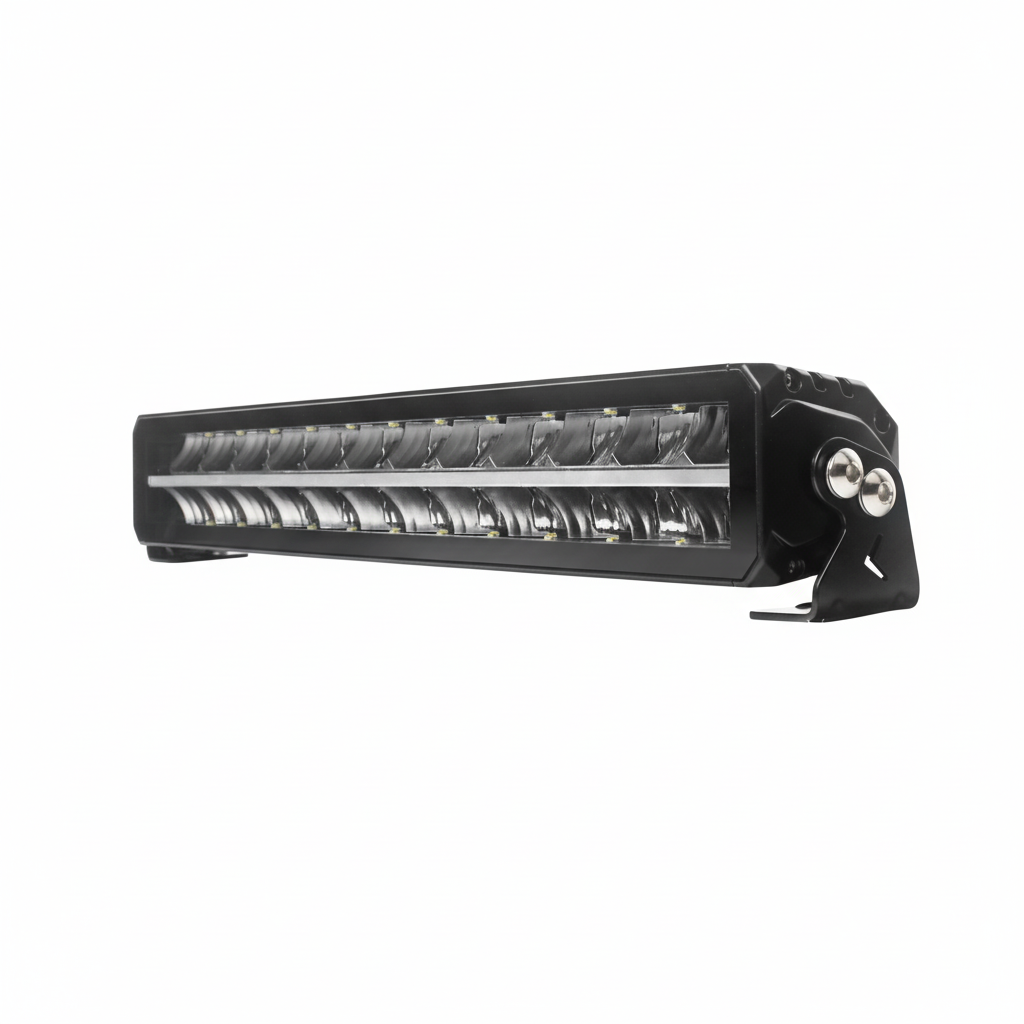

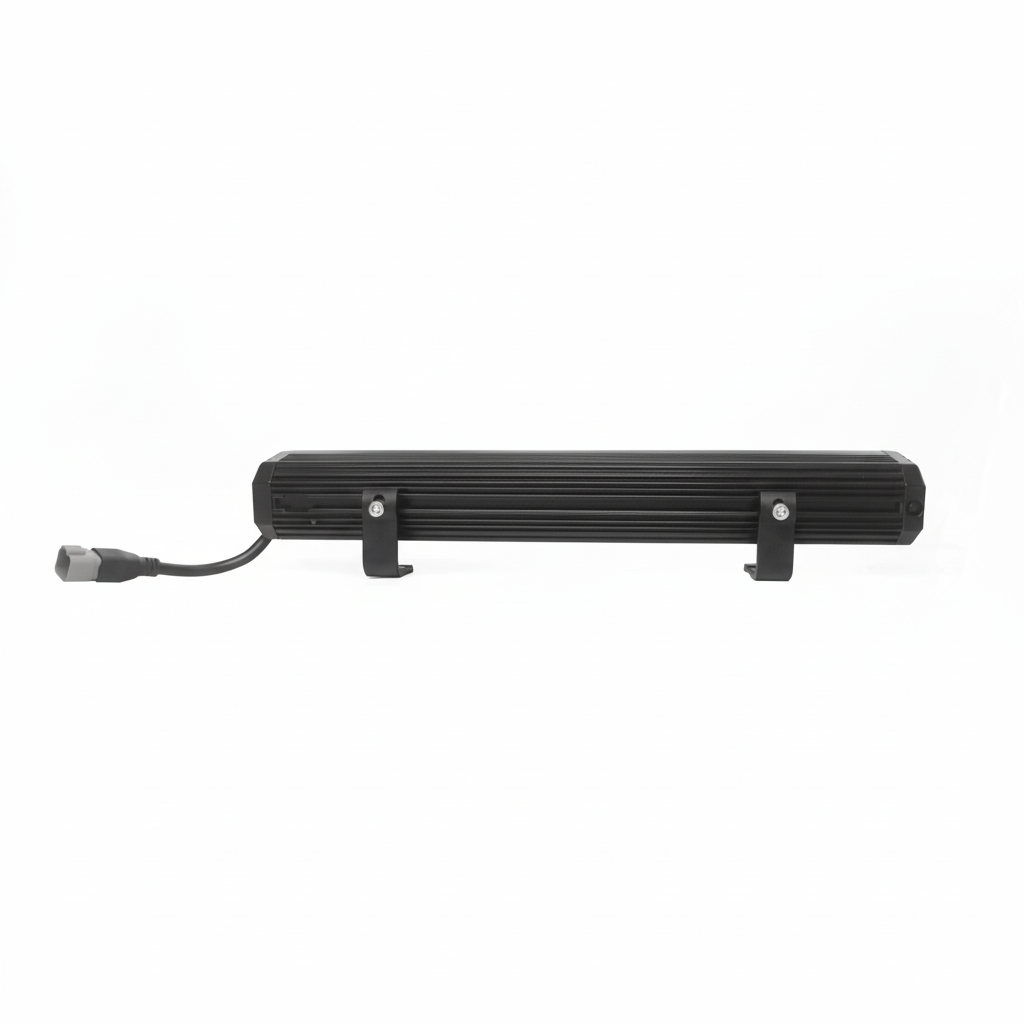

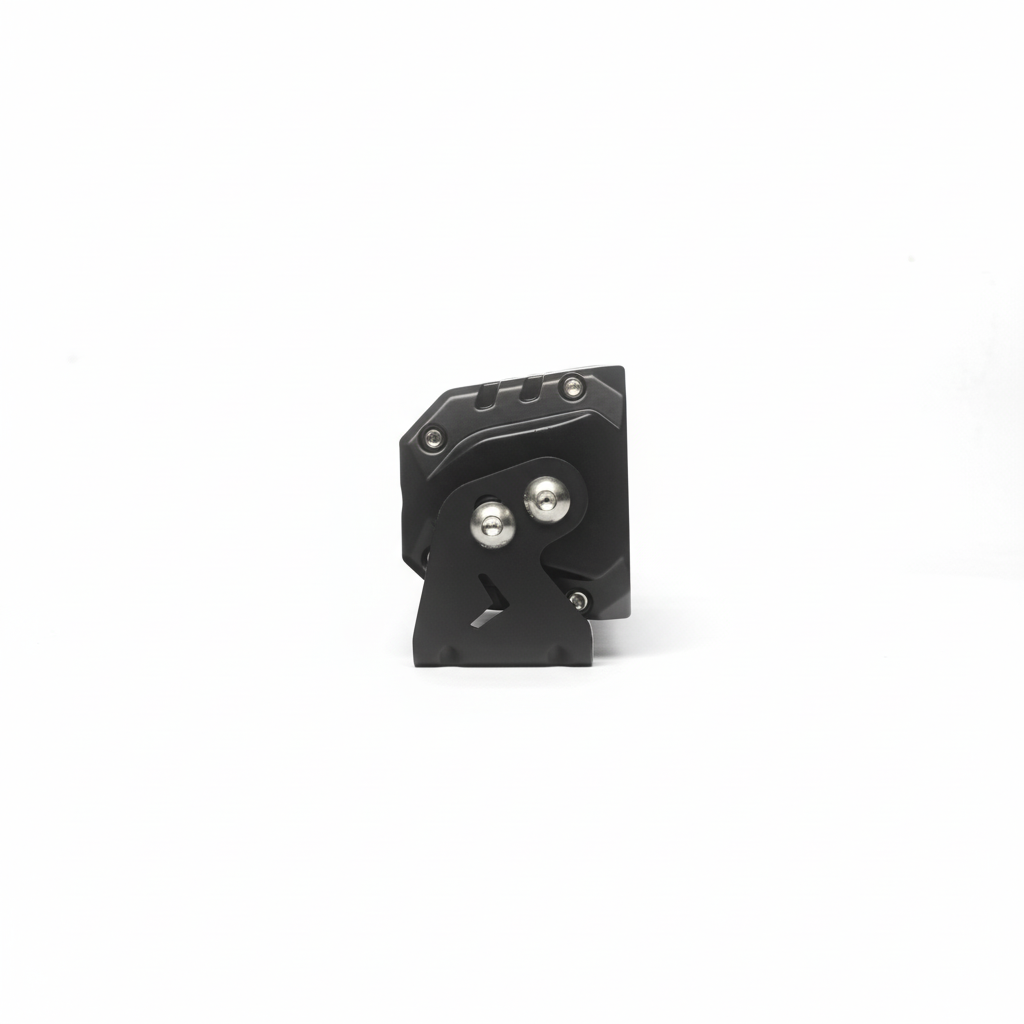

| Mounting | Stainless steel side and back mount brackets included |
| Ingress protection | IP67 |
| Approvals | E-marked R112 (driving), R7 (white position), R10, R148, R149; EMC CISPR 25 Class 4 |

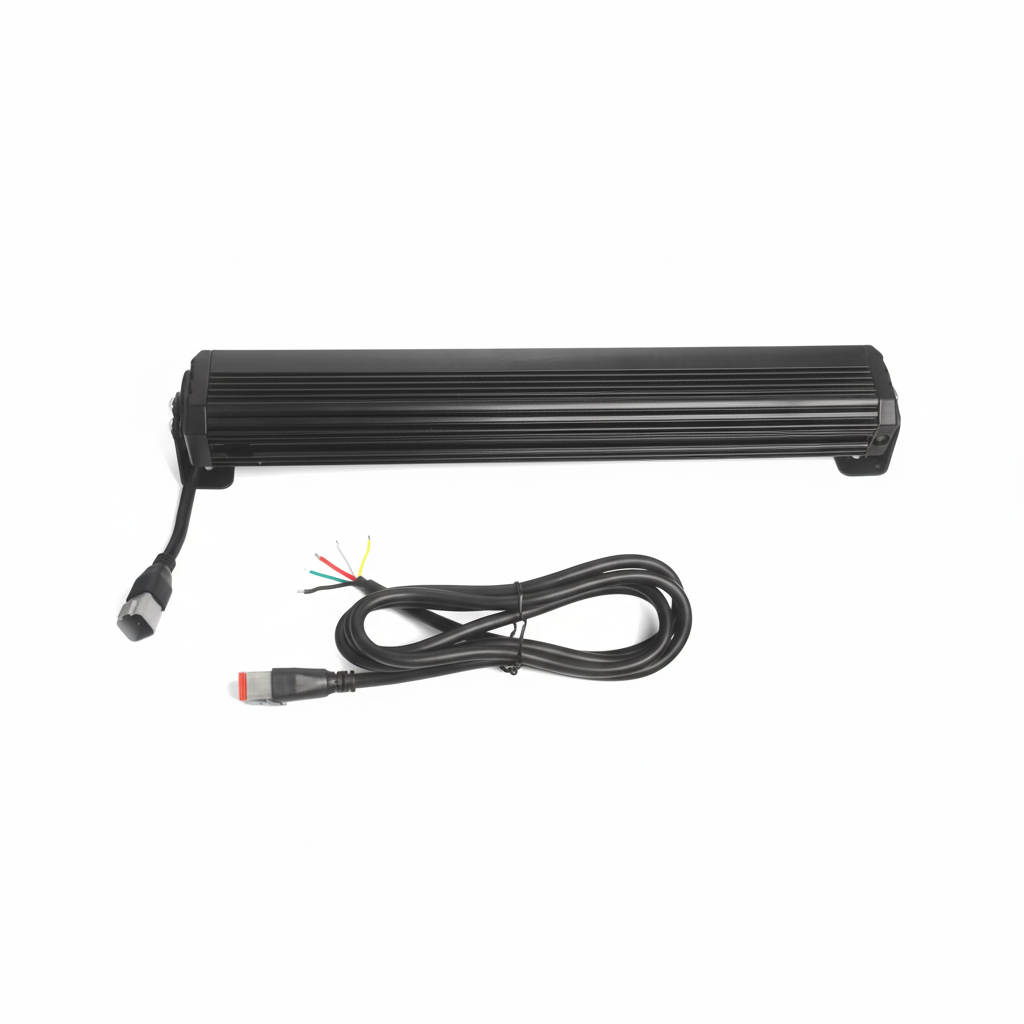

| Cable | 500 mm |
| Weight | 3 kg |
| Dimensions | 555 x 69 x 76.3 mm (excl. bracket) |
Suitable for Make/Model
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM
OEM Part Numbers
Original equipment names and images are quoted and shown for reference purposes only and are not intended to infer that our replacement lights or parts are used as original equipment or OEM

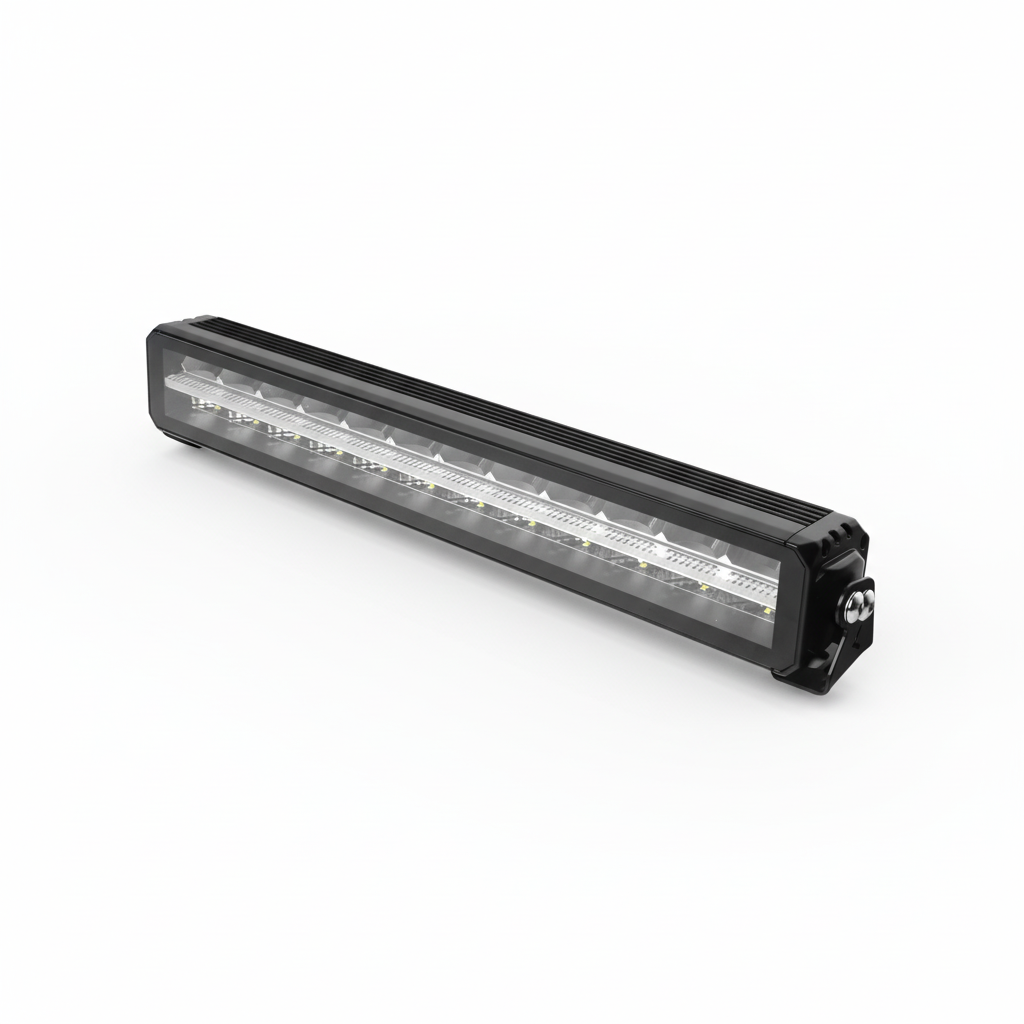

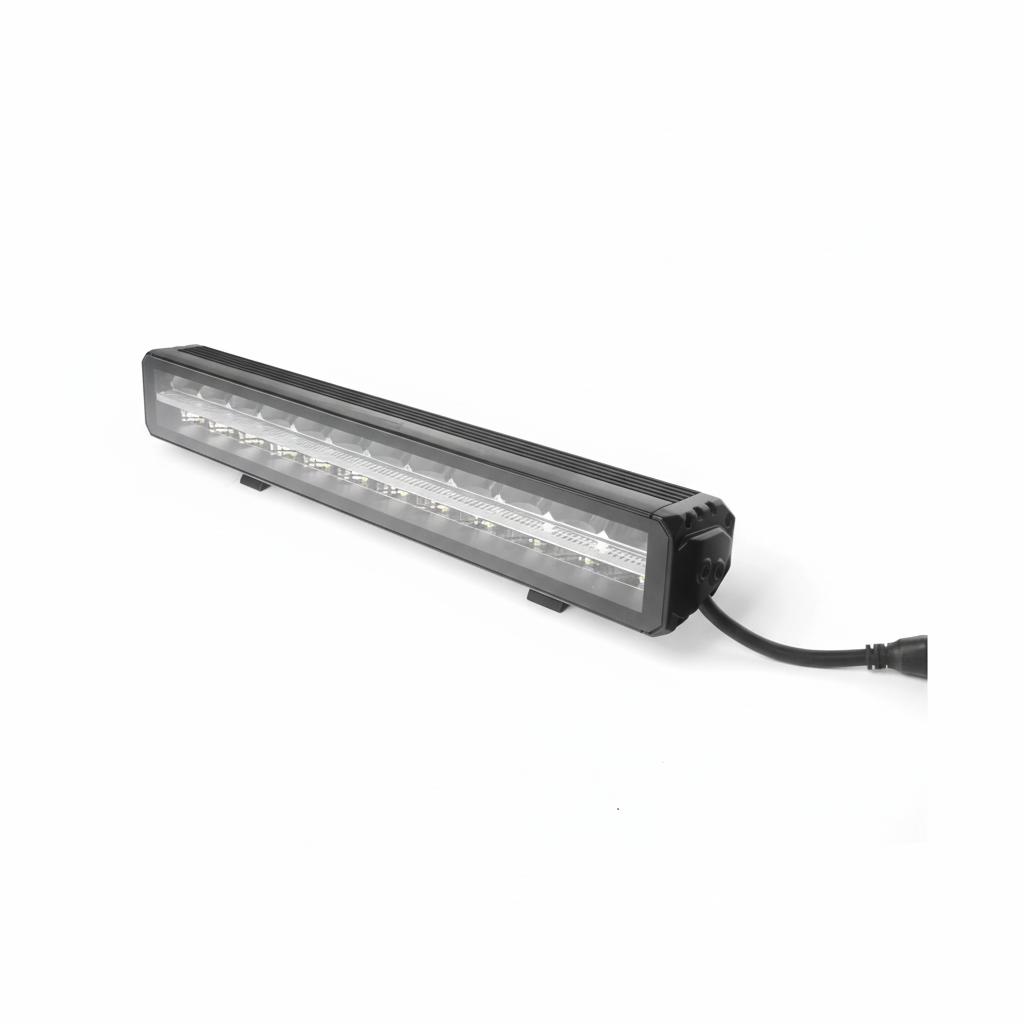

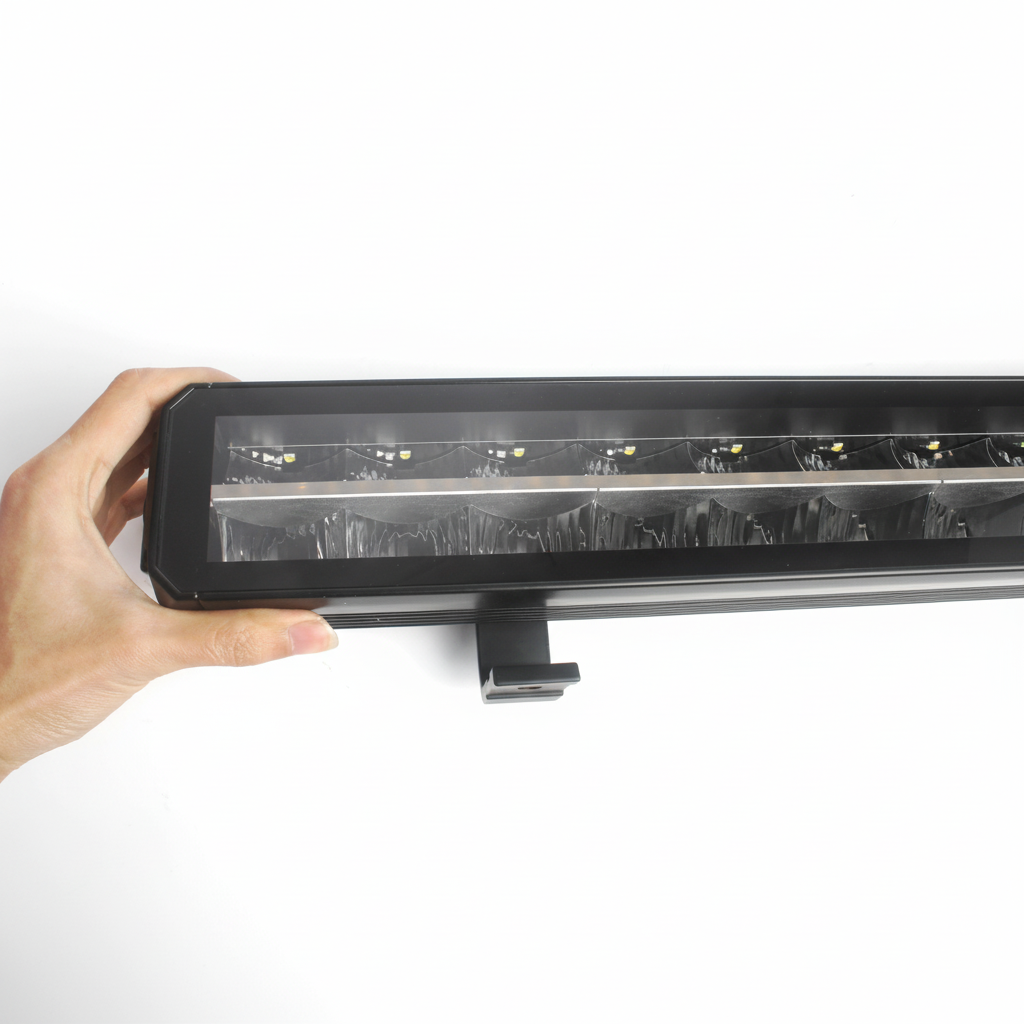

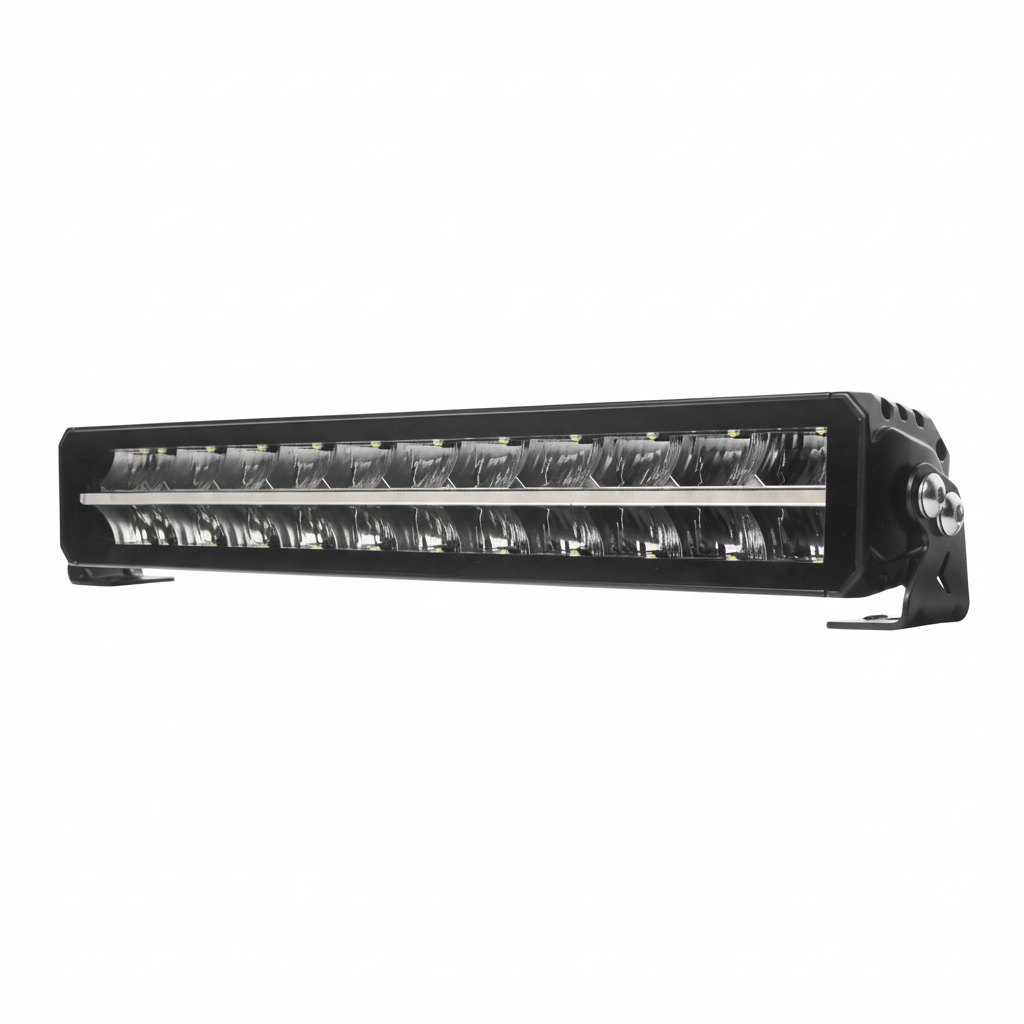

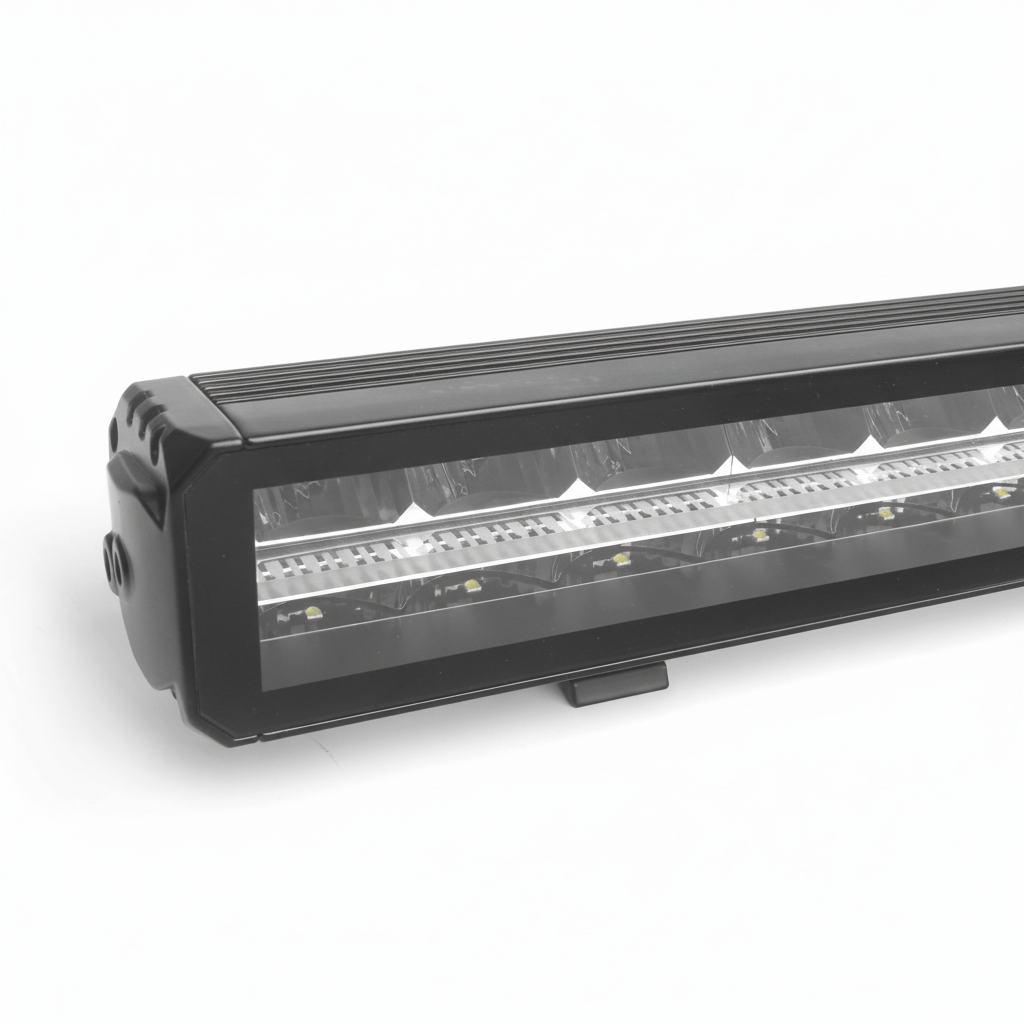

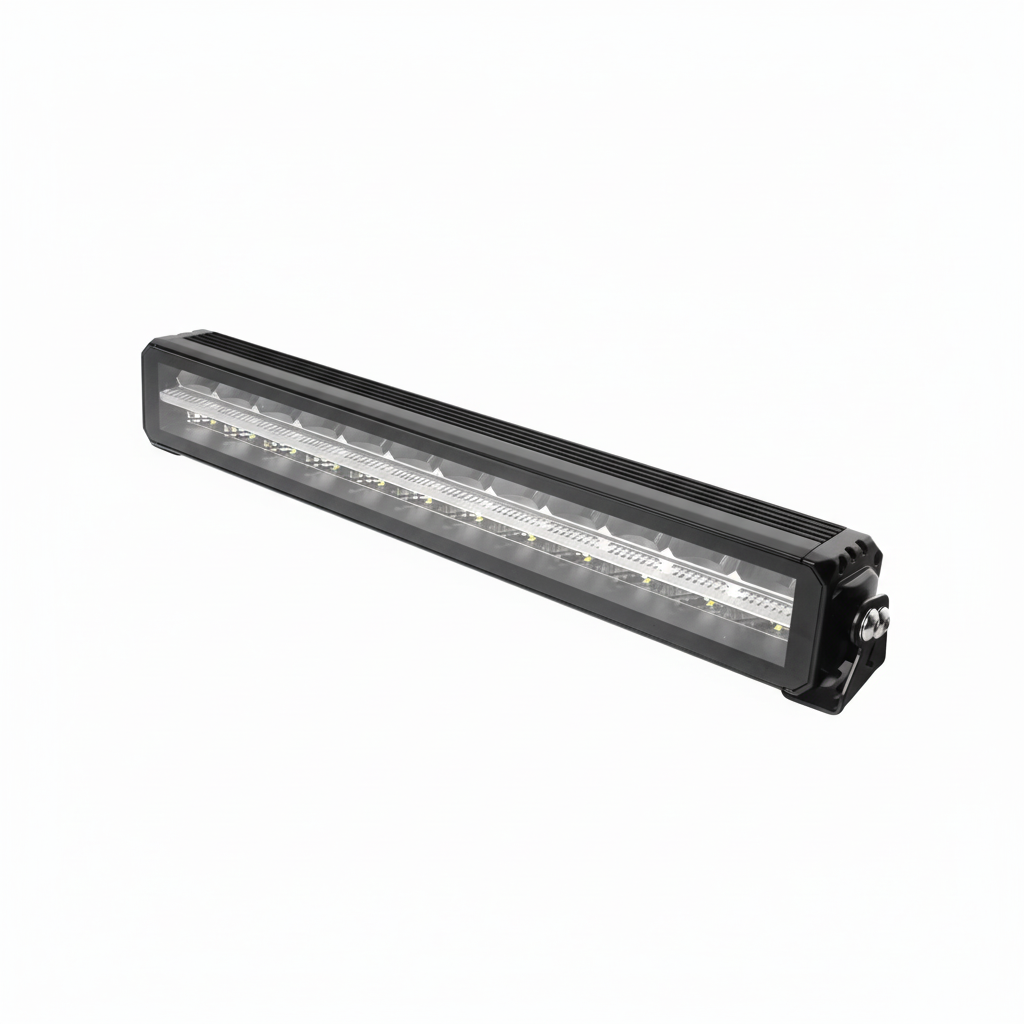

22" (550 mm) LED driving lightbar with a dual colour position light.

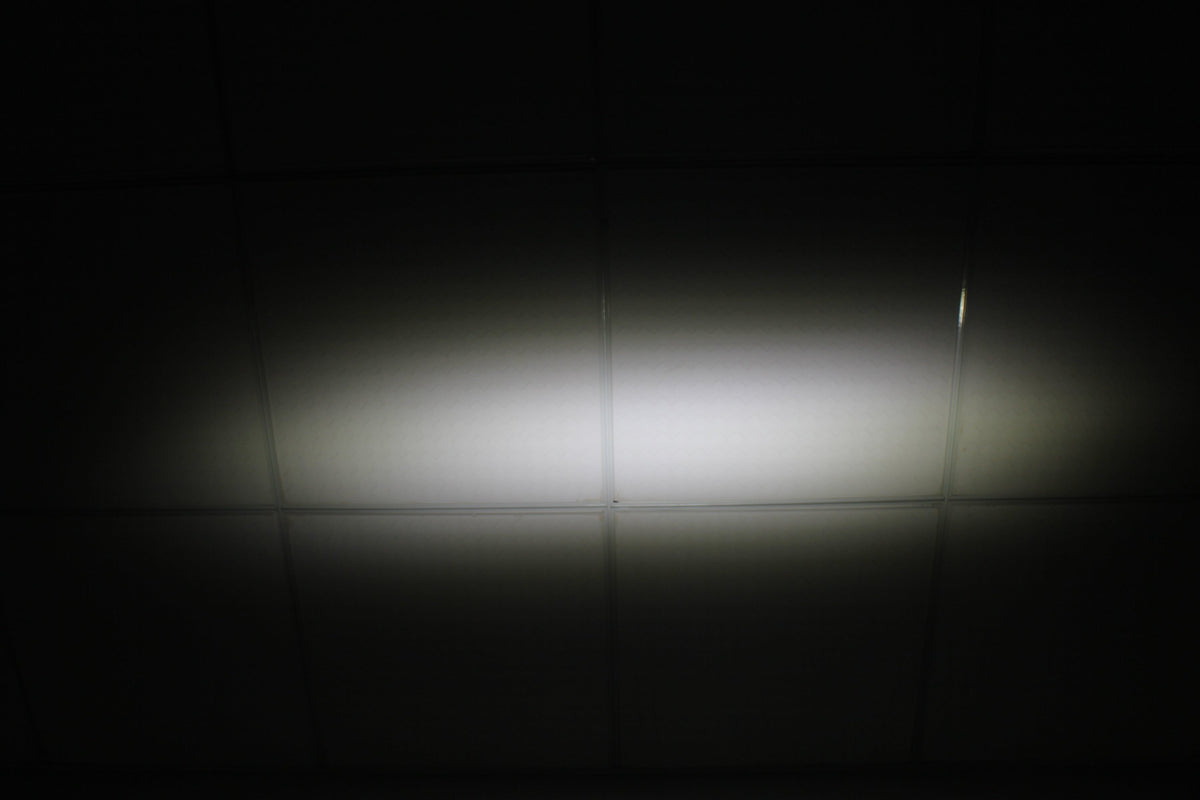

95 Watt main beam on OSRAM LEDs giving 10,500 raw lumen (8,000 effective) and a 460 m range at 1 lux, with an 8.5 Watt position light in a white or amber colour choice. Aluminium casing with a polycarbonate lens and stainless steel side and back mount brackets, IP67, E-marked to R112, R7, R10, R148 and R149 with CISPR 25 Class 4 suppression and over/under voltage protection. 10-30V, 500 mm cable.
